Product Description

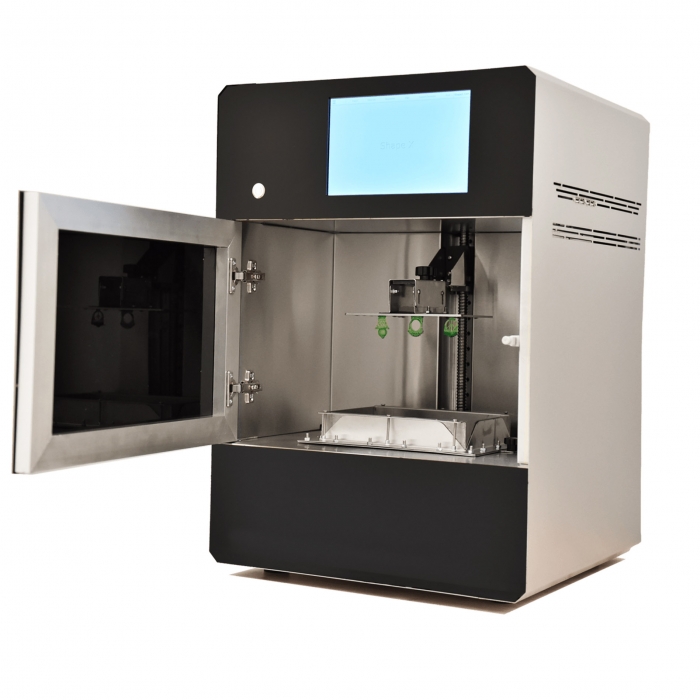

Shape X - Completely open system
Imagine the level of service and value you can provide when you control the timing and cost. 3D printing makes this possible. And it has never been easier. Introducing the Shape X, our first 3D printer featuring our ground breaking technology. We have Designed the print engine to make a leap forward in print quality and speed, using a powerful UV LED system and a proprietary membrane to provide an ultra-fast printing with high resolution.

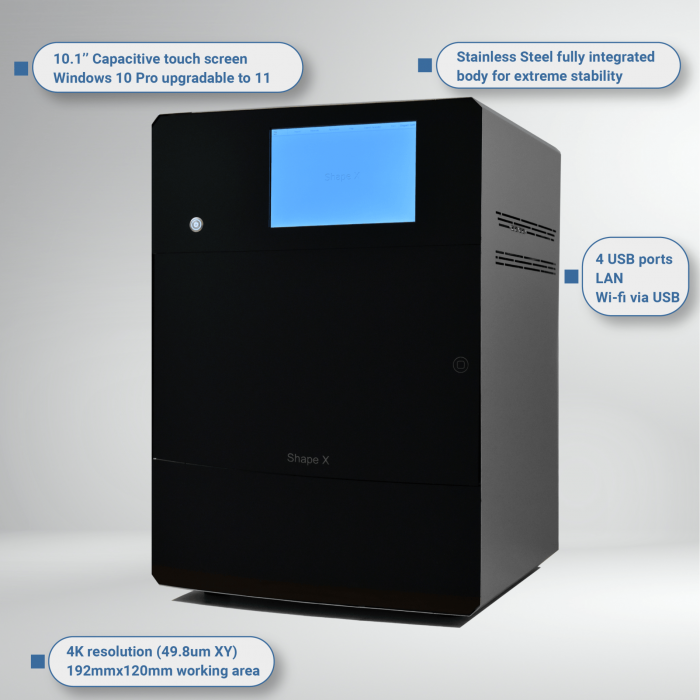

A -10.1inch touch screen, an integrated desktop pc with windows 10 Pro to handle all printing tasks without the need of a separate computer. Use Wi-Fi, LAN or the side mounted USB to load files.

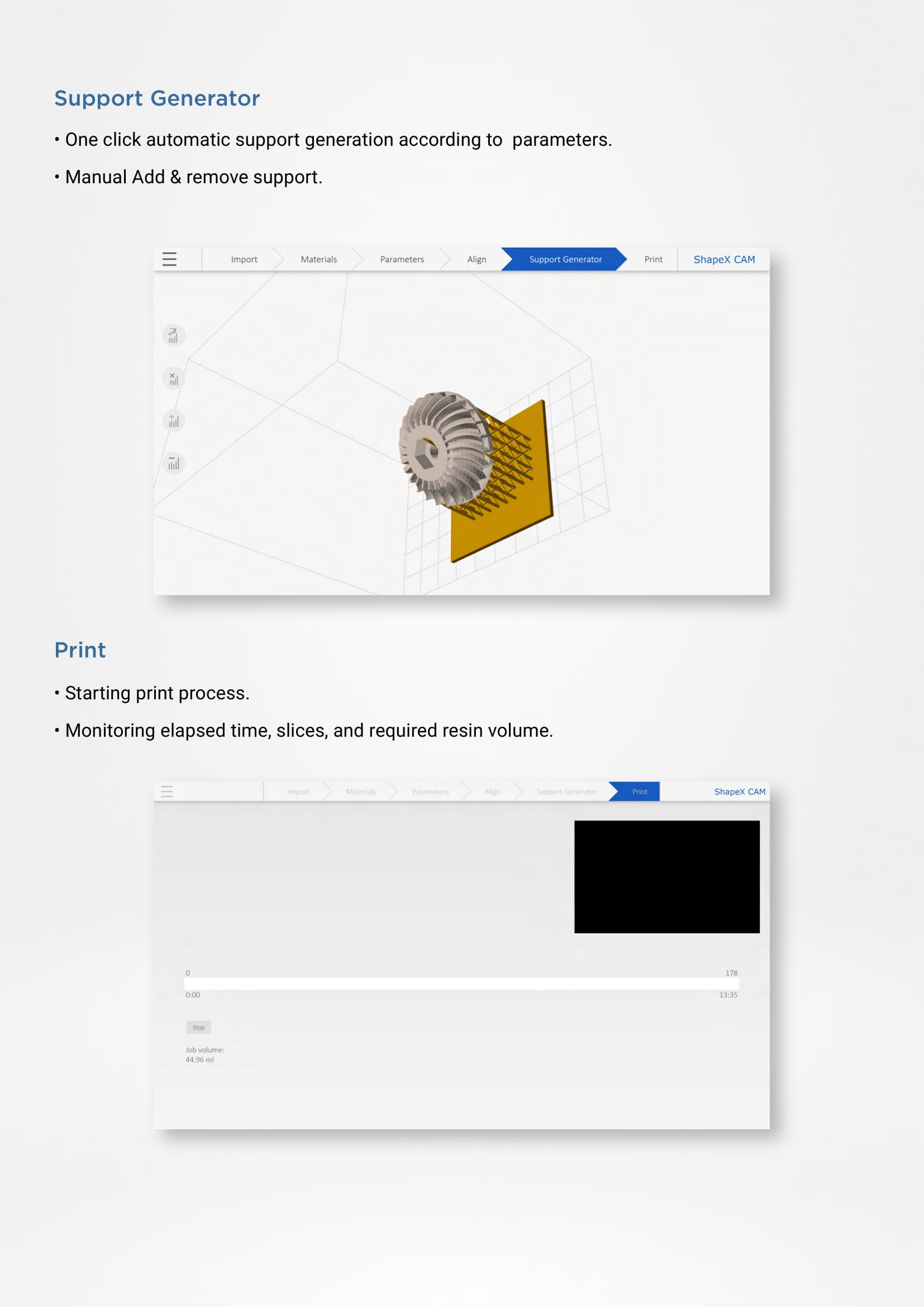

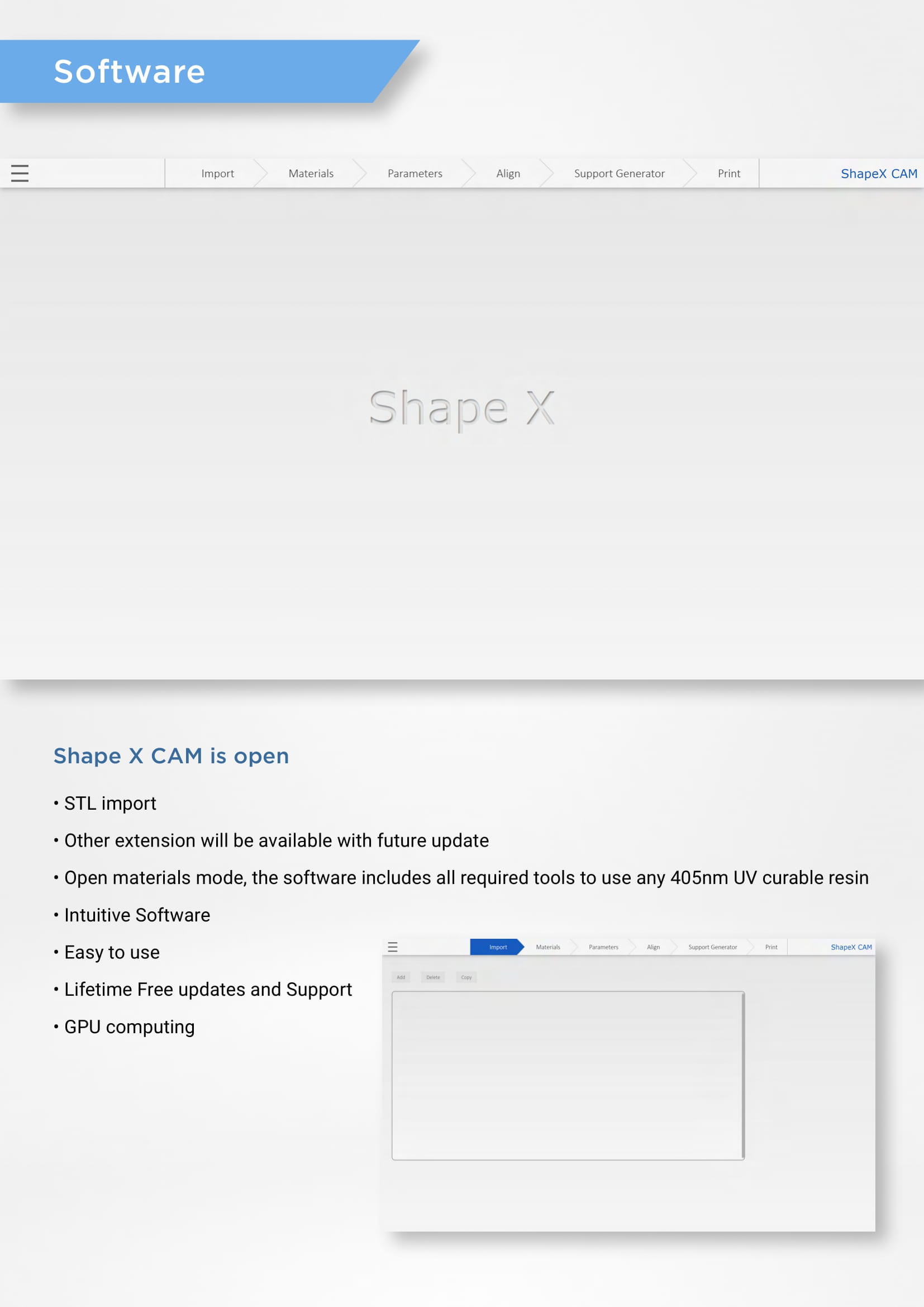

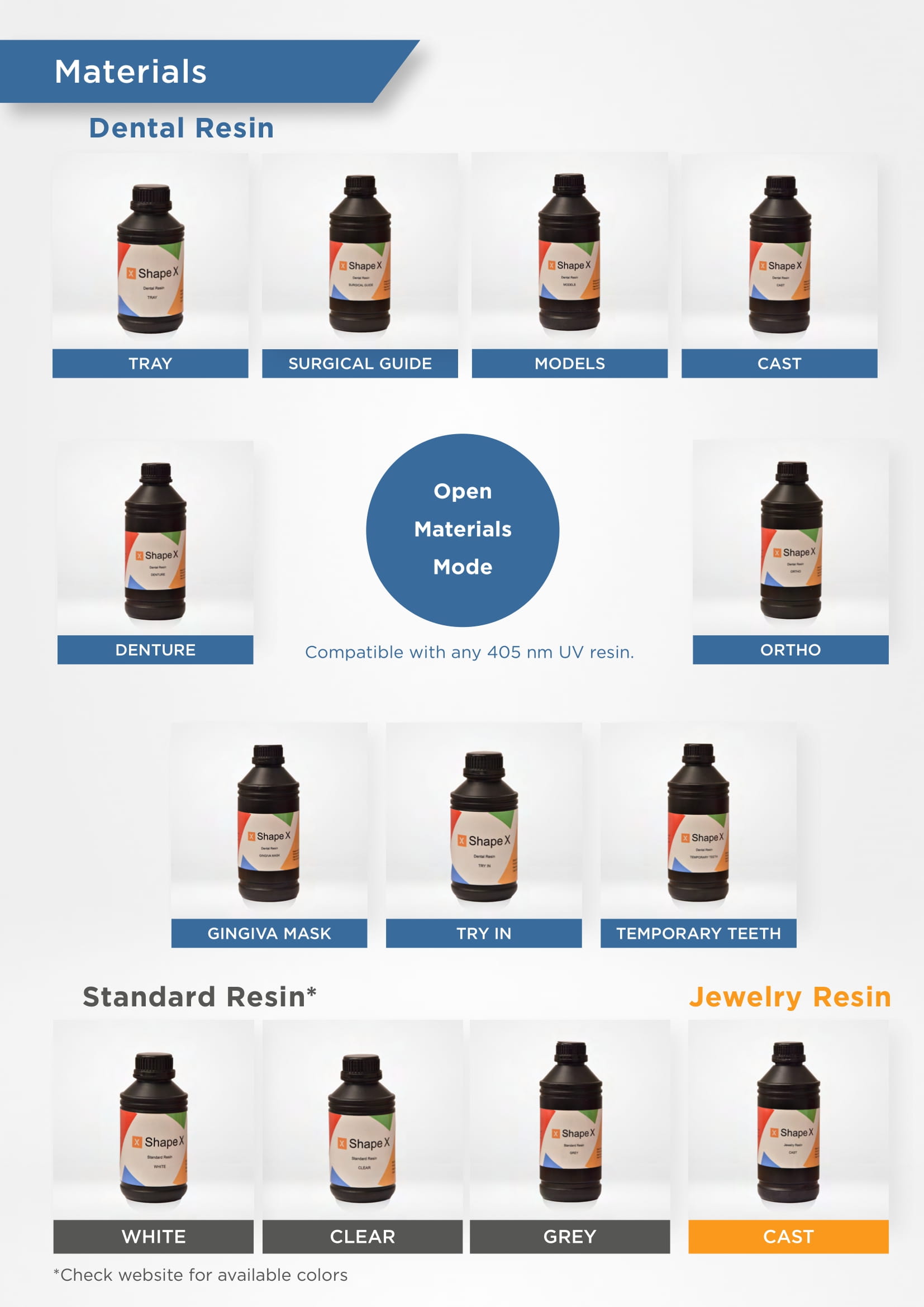

Shape X CAM software automates tasks such nesting, support generation with virtually NO EFFORT from the user. So, we optimized the Shape X to run continuously. It is equipped it with a remote printing capabilities and user replaceable components. Thus, with OPEN materials mode and always expanding library of materials, it will enable the user to print anything. The Shape X , a competitively priced desktop 3D printer from Fusion technologies is one of the FASTEST 3D printers available, delivering the most accurate , robust models.

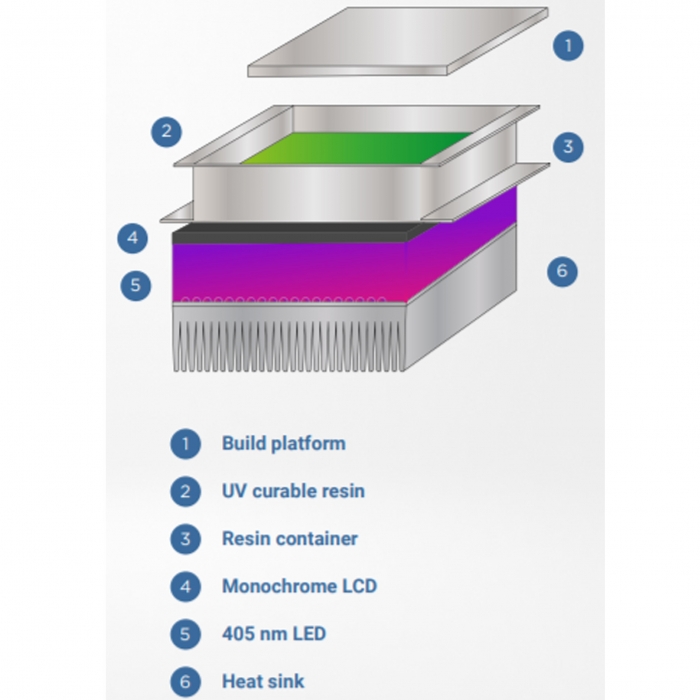

3D printing is a photochemical process , that cures liquid plastic resin into solid parts using ultraviolet light. It works by projecting light through a digital light mask into a container of UV-curable resin. As a sequence of UV images that are projected, the part solidifies and the build platform rises.
UFP stands for Fusion Ultra-Fast Printing Technology. The whole process could be achieved through:

• A membrane that allows for super low pull forces and wide resin compatibility.
• A uniform high power LED engine at 405 nm with high resolution digital mask.
• An extreme powerful air-cooling system.

Fusion started in 2017 its research activities to solve the above-mentioned pull force problem. The company has tested many membrane formulations and types. The last membrane consists of a blend of materials, that allows super low pull forces and wide resin compatibility.

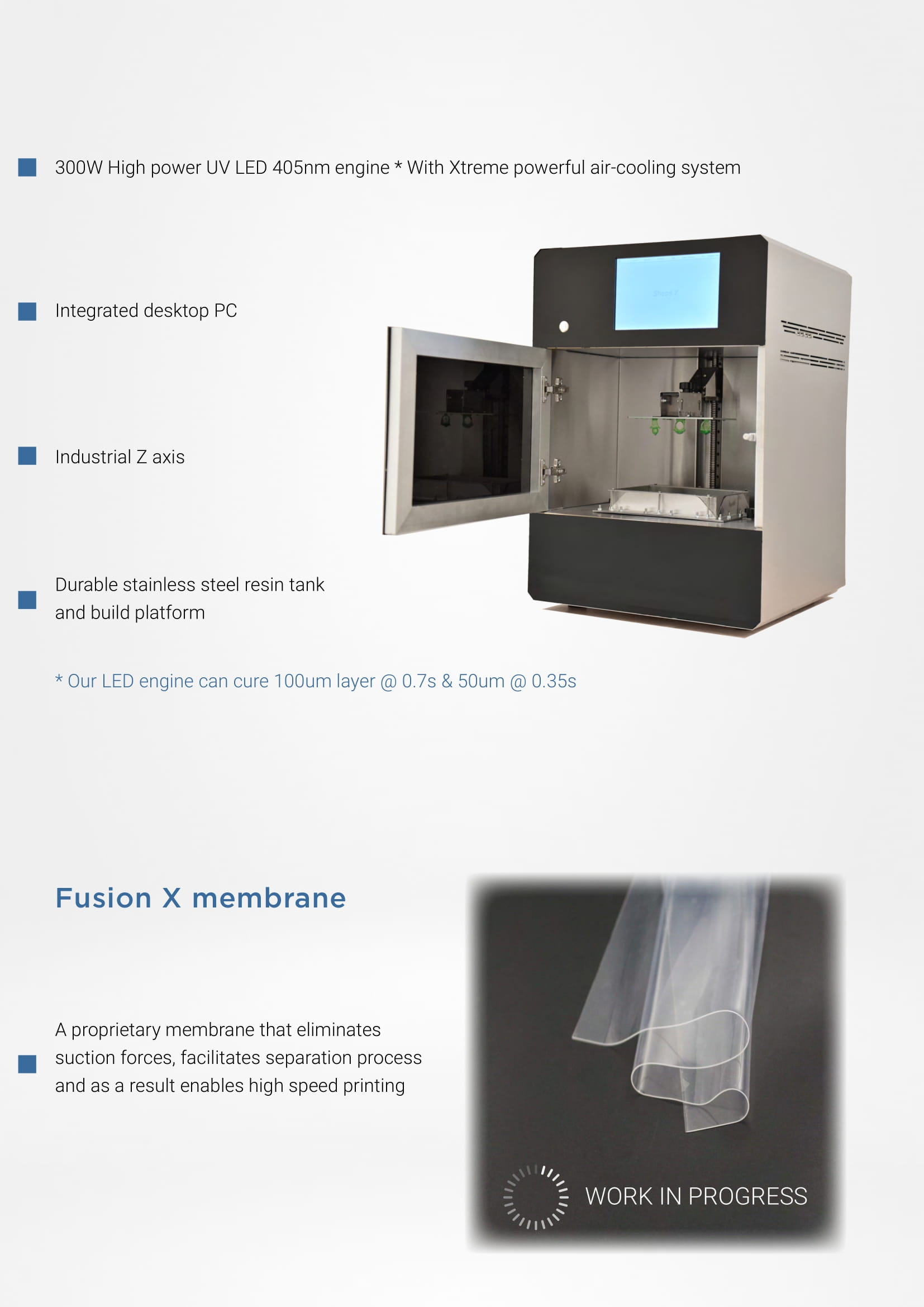

Monochrome LCD are used above the transparent print window that consists of a 300W UV LED engine at 405nm. A uniform light is achieved using a perfectly parallel LED system. As well as, an extreme powerful air-cooling system that controls generated heat.

We outperform other printers that use typically Laser systems too slow. Another source of light is DLP projector. If one moves the projector closer to the optical window, the pixels get smaller, increase the resolution, but limit the available build area.

DLP systems require lenses(most lenses suffer from at least one kind of distortion barrel, pincushion and moustache). Very good printers have lens elements that significantly reduce distortion, which is not noticeable to our eyes but affect accuracy.

Our technology allows an ultra-fast printing . As a result , parts will require fewer and smaller supports. Save material and post processing will be faster and simpler.
